Rack structure & Peak shaving and valley filling:WRES-H-25-016

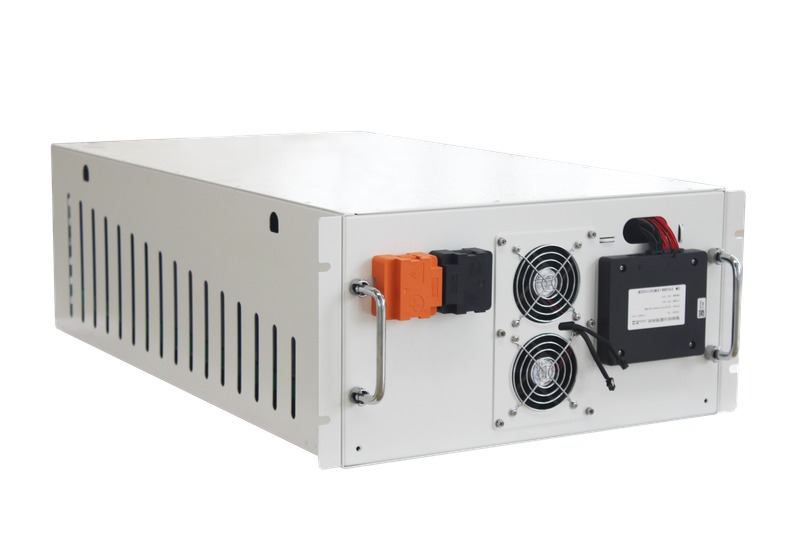

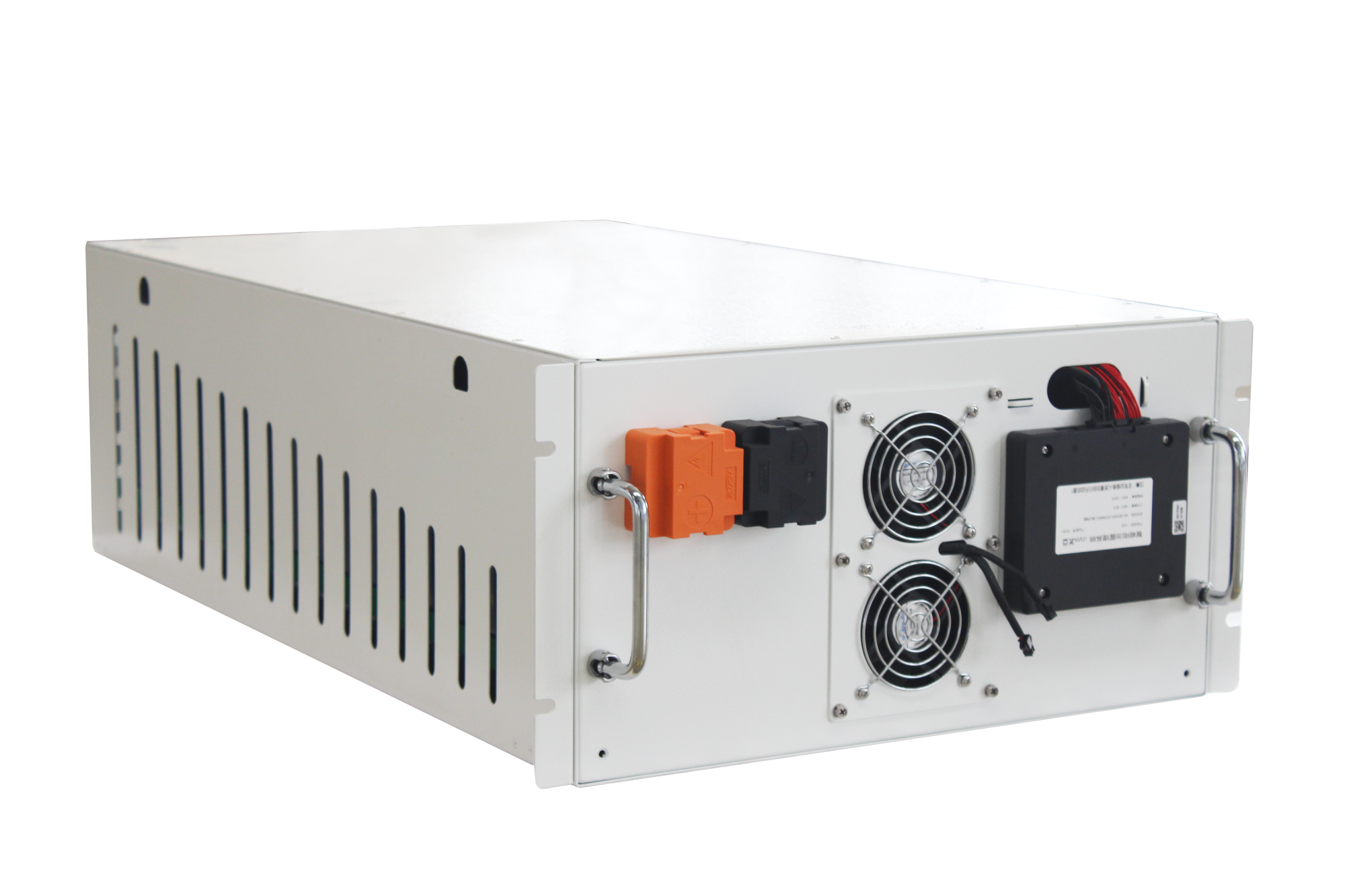

The WRES-H-25-016 is a rack-mounted energy storage battery. It has a total energy of 16.07 kWh, usable energy of 15.11 kWh, nominal voltage of 51.2 Vdc, and rated capacity of 314 Ah. With 90% DOD and scalable to 157A, its BMS provides multiple protections. Measuring 440*230*760mm and weighing 116KG, it’s certified by CE and UL 1973, supports CAN/RS485, has IP20 rating for indoor use, and is ideal for energy storage applications.
Model:
Availability:
Quantity:
Product  Name WRES-H-25-016
Total Energy (kWh) 16.07
Usable Energy (kWh) 15.11
Nominal Voltage (Vd.c) 51.2
Voltage Range (Vd.c) 44.8 ~ 57.6
Rated Capacity(Ah) 314
Scalability 157A
Installation Type 157A
Recommend Using DOD 90%
BMS Features Over-voltage & Over-current Protection Short-circuit Protection  Low-voltage Protection                   Over Temperature Protection/Cell Balance
Installation Type Rack-Mounted
Dimension (W *H* D)(mm) 440*230*760
Weight (KG) 116
Certification CE/Cell UL 1973
Communication CAN/RS485
Storage Temperature -20*C-55℃℃(-4°F-131°F)
IP Rating IP20
Cooling Type Natural
Operating Environment Indoor (5%-95%(RH} No Condensing)
Altitude ≤2000 m


  • Strict selection of high-quality components

Insist on using industry-leading high-quality components and materials.

  • Strict production control

Standardize workflow, check and maintain equipment regularly.

  • Strict quality inspection

Insist on using industry-leading high-quality components and materials

  • Product continuous optimization

Actively collect customers’ opinions and suggestions, and make continuous improvement.

  • Battery life tracking

Premium cells with proprietary BMS for real-time monitoring. Intelligent maintenance strategies ensure system safety and extended lifespan.

  • Electrical safety design

Proprietary PCS and PACK with integrated electrical isolation, over-voltage protection, and grounding to prevent failures. Optimized electrical design achieves up to 92% system conversion efficiency.

  • Design of thermal management system

High-performance thermal materials with aerodynamically optimized ducts and intelligent temperature control reduce self-consumption by 25%. Maintains <5°C thermal differential for system stability.

  • Structural stability design

Proprietary corrosion/temperature-resistant enclosures with optimized structural design, enhanced shock absorption, and IP54 rating ensure reliable operation in harsh environments.

  • Operational safety design

Intuitive user interface with emergency power cut-off; Pressure-relief valves prevent explosions by releasing overpressure.
