Ultra-High Power Range: Configurable from 360kW to 960kW, supporting 1000VDC for full EV model compatibility
Flexible Terminal Configuration: Supports both liquid-cooled and standard gun lines to suit varied application needs
Smart Power Distribution: Combines super-fast and regular fast terminals with intelligent switching for optimal resource use
Advanced Thermal & Noise Management: Air-cooled system with noise reduction technology for quiet, reliable operation
Secure Data Management: Maintains charging data integrity and protects customer information
High Efficiency Performance: Delivers up to 95% energy conversion efficiency

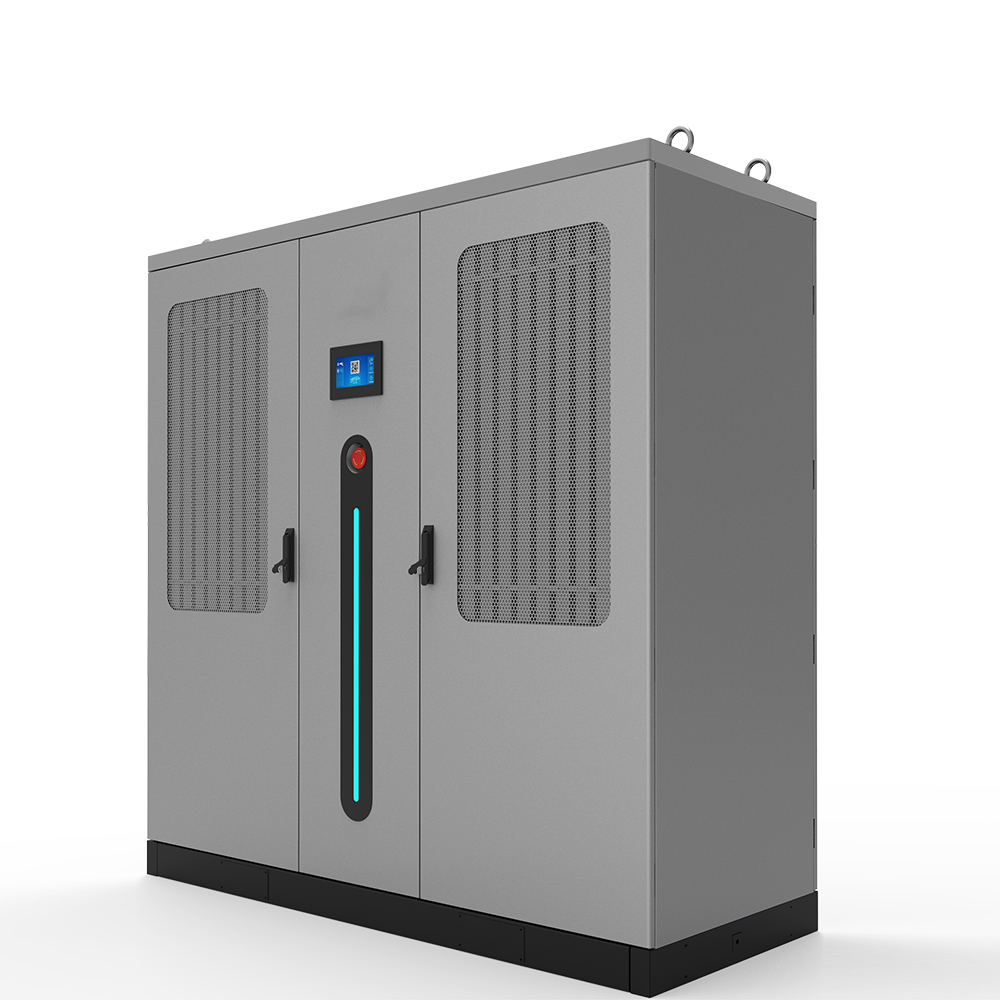

| MODEL | WREVC-25-960 |
| Maximum output power | 360kW ~ 800kW |
| Input Voltage Range | 380Vac±15% |
| Operating frequency | 45Hz ~ 65Hz |
| Input current harmonic | ≤5% |
| Power factor | ≥0.99 |
| Output Voltage Range | DC200V ~ 1000V |
| Charging method | Multi-Output Flexible Charging |
| Voltage regulation accuracy | ≤±0.05 |
| Current regulation accuracy | ≤±1% |
| Maximum efficiency | ≥95% |
| Startup method | Card swipe, APP, WeChat scan, VIN auto-recognition, dispatch charging |
| Protection Features | Lightning protection, overvoltage protection, overcurrent protection, emergency stop protection, short circuit protection, etc. |
| Environmental Conditions | Air temperature: -25 ~ 50℃; Liquid temperature: -25 ~ 75℃; Relative humidity: 5% ~ 95% |
| Charging Modes | Fixed amount mode, timed mode, fixed quantity mode, automatic full-charge mode, scheduled charging |
| Protection Functions | IP54 |
| User Interface | 7-inch touch screen |
| Charging interface | Multiple guns |
| Cooling method | Charging module with liquid cooling; the terminal can be selected with either liquid cooling or air cooling |
