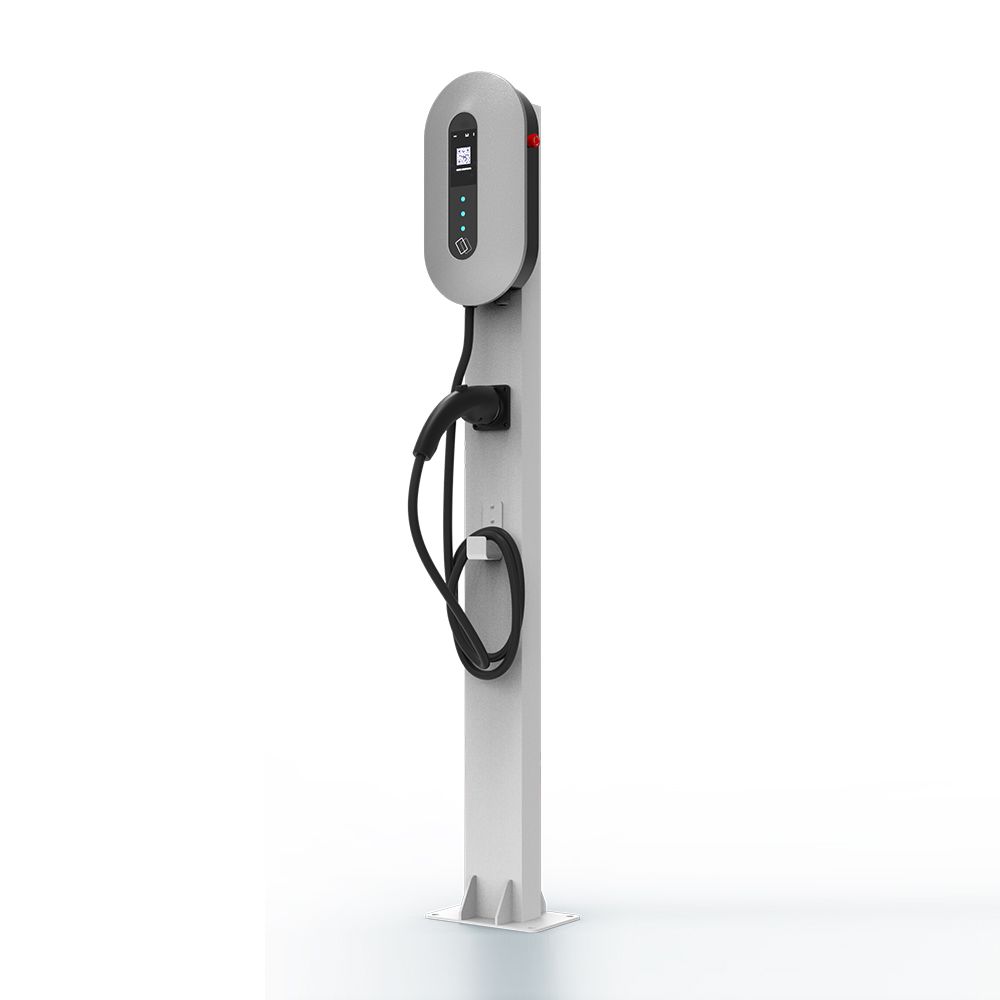

Stylish & Compact Design: for private and public charging scenarios
Flexible Installation: wall-mounted or pedestal options
Real-Time Display: charging status + power/charging/fault indicators
IC Card Authentication: secure access with full card management
Smart Connectivity: Ethernet / 4G + QR code payments (WeChat, Alipay)
Comprehensive Safety: Short circuit, overcurrent, overvoltage, leakage, lightning protection
Versatile Applications: Residential, office, shopping malls, and more
AC Charging Compatibility: Supports EVs with AC ports
| MODEL | WREVC-25-7 |
| Rated Power | 7kW |
| Input Voltage Range | 220Vac±20% |
| Input Frequency | 50Hz±1Hz |
| Output Voltage Range | 220Vac±20% |
| Output Current | AC32A |
| Installation Method | Wall-mounted, floor-standing |
| Wiring Method | Bottom input wiring, bottom output wiring |
| Protection Functions | Ip54 |
| Protection Features | Lightning protection, overvoltage protection, overcurrent protection, emergency stop protection, short circuit protection, etc. |
| Environmental Conditions | Operating temperature: -25°C to 55°C; Relative humidity: 5% to 95% |
| Charging Modes | Fixed amount mode, timed mode, fixed quantity mode, automatic full-charge mode, scheduled charging |
| User Interface | LED indicators, display screen |
