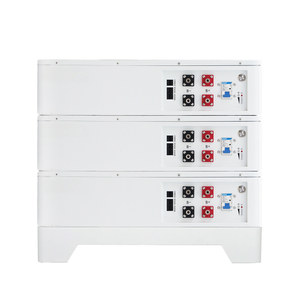

Stackable home battery & High-capacity modular battery : Stackable Battery

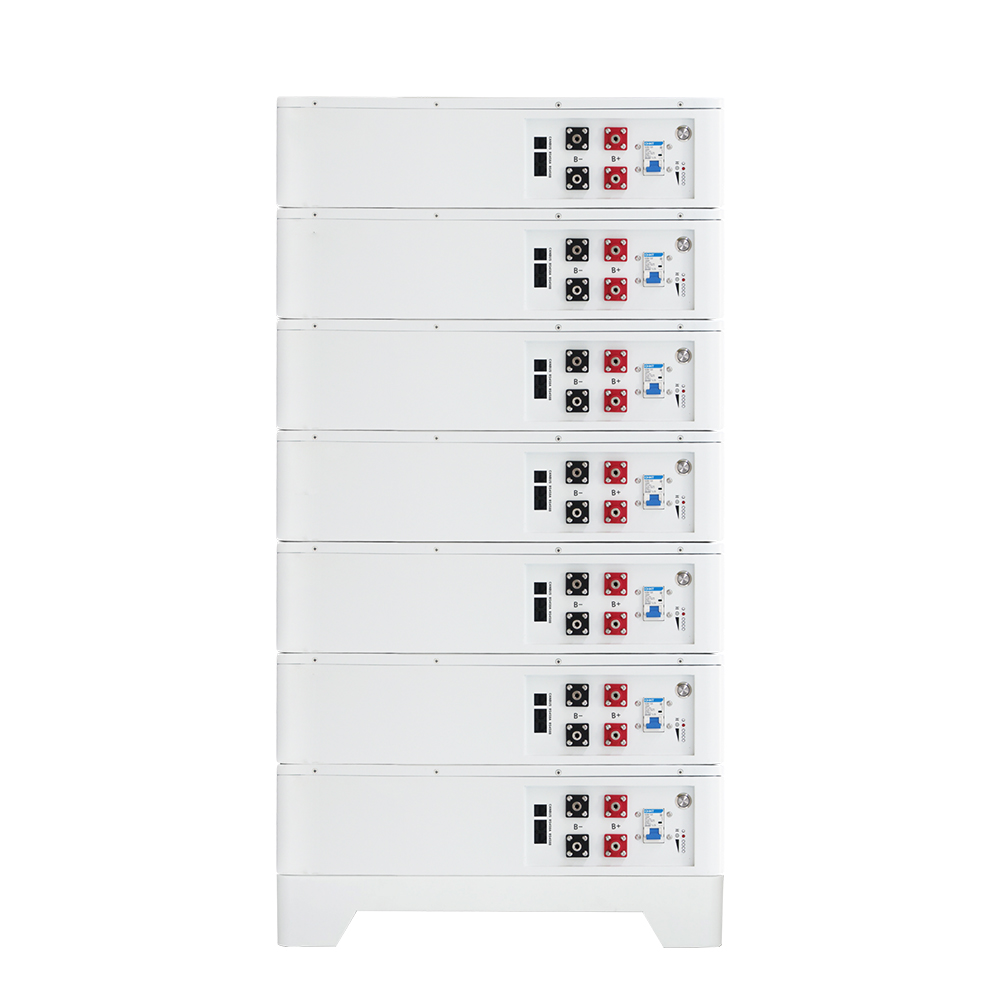

Introducing the WRES-L-25-048 Energy Storage Battery, a high-performance solution for reliable energy management. It offers a rated capacity of 945Ah, a voltage range of 44.8-57.6Vdc, and supports 700A charge/discharge current, with an efficiency of 90%.
Comprehensive safety protections include over-voltage, over-current, short-circuit, low-voltage, and over-temperature safeguards, plus cell balance technology. It features a Bluetooth/button-controlled screen (wall-mounted type) and supports CAN/RS485 communication for easy integration and monitoring.
Designed for flexibility, it can be wall-mounted or stackable, with dimensions of 6601164450mm and a weight of 458KG. With an IP20 rating, it’s suitable for indoor use (5%-95% RH, no condensing), operating in -20℃ to 55℃ and altitudes ≤2000m. Boasting a 15+ year lifespan at 25℃, this battery is ideal for industrial, commercial, and residential energy storage, delivering efficiency, safety, and durability.


Model:
Availability:
Quantity:

Stackable home battery & High-capacity modular battery : Stackable Battery

Product  Name WRES-L-25-048
Total Energy (kWh) 48.37
Usable Energy (kWh) 45.46
Nominal Voltage (Vd.c) 51.2
Voltage Range (Vd.c) 44.8-57.6
Rated Capacity(Ah) 945
Max. Current (Charge) 700A
Max. Current (Discharge) 700A
Recommend Using DOD 90%
BMS Features Over-voltage & Over-current Protection Short-circuit Protection  Low-voltage Protection  Over Temperature Protection/Cell Balance
Standard Features Bluetooth/Button-Controlled Screen(Wall-mounted type)
Dimension (W *H* D)(mm) 660*1164*450
Weight (KG) 458
Installation Type Wall-Mounted & Stackable
Communication CAN/RS485
Storage Temperature `-20*C-55℃℃(-4°F-131°F)
IP Rating IP20
Cooling Type Natural
Operating Environment Indoor (5%-95%(RH} No Condensing)
Altitude ≤2000 m
Operation Life 15+years(25℃/77°F)


  • Strict selection of high-quality components

Insist on using industry-leading high-quality components and materials.

  • Strict production control

Standardize workflow, check and maintain equipment regularly.

  • Strict quality inspection

Insist on using industry-leading high-quality components and materials

  • Product continuous optimization

Actively collect customers’ opinions and suggestions, and make continuous improvement.

  • Battery life tracking

Premium cells with proprietary BMS for real-time monitoring. Intelligent maintenance strategies ensure system safety and extended lifespan.

  • Electrical safety design

Proprietary PCS and PACK with integrated electrical isolation, over-voltage protection, and grounding to prevent failures. Optimized electrical design achieves up to 92% system conversion efficiency.

  • Design of thermal management system

High-performance thermal materials with aerodynamically optimized ducts and intelligent temperature control reduce self-consumption by 25%. Maintains <5°C thermal differential for system stability.

  • Structural stability design

Proprietary corrosion/temperature-resistant enclosures with optimized structural design, enhanced shock absorption, and IP54 rating ensure reliable operation in harsh environments.

  • Operational safety design

Intuitive user interface with emergency power cut-off; Pressure-relief valves prevent explosions by releasing overpressure.
