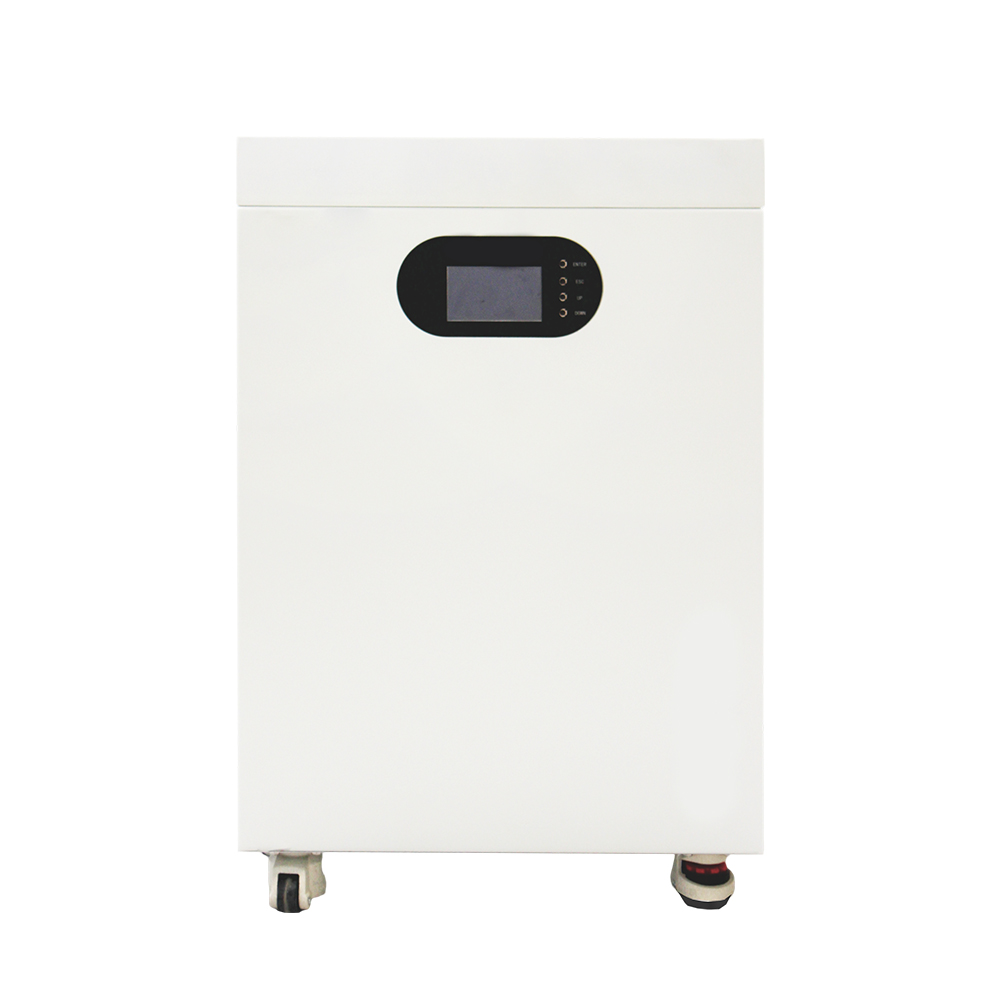

All-in-one wall battery&Plug-and-play wall battery Household Energy Storage

Designed for enhanced capacity, the WRES-HW-25-010 delivers 10.24 kWh total energy with 51.2V operating voltage. Its robust 200A charge/discharge capability and 90% DoD ensure efficient power utilization. The system incorporates comprehensive BMS protection including trip protection for added safety. Supporting parallel expansion up to 20 units, it maintains ≥8000 cycles lifespan at 25°C. This model provides a perfect balance of performance and reliability for medium-scale commercial and residential applications requiring extended backup power.

Model:	WRES-HW-25-008 WRES-HW-25-010
Availability:

Quantity:



Inquire Add to Basket

Product Name	WRES-HW-25-008	WRES-HW-25-010
Total Energy (kWh)	8.04	10.24
Usable Energy (kWh)	7.56	9.63
Nominal Voltage (Vd.c)	25.6	51.2
Voltage Range (Vd.c)	22.4-28.8	44.8-57.6
Rated Copacity(Ah)	314	200
Max. Current (Charge)	200A	200A
Max. Current (Discharge)	200A	200A
Recommend Using DOD	90%	90%
BMS Features	Over-voltage & Over-current Protection Short-circuit Protection Low-voltage Protection Over Temperature Protection Cell Balance	Over-voltage & Over-current Protection Short-circuit Protection Low-voltage Protection Over Temperature Protection Cell Balance
Scalability	Max 20 in Parallel	Max 20 in Parallel
Dimension (W H D)(mm)	440570236	520620240
Weight (KG)	70	88
Standard Features	Button-Controlled Screen/Bluetooth	Button-Controlled Screen Trip Protection/Bluetooth
Communication	CAN/RS485	CAN/RS485
Storage Temperature	-20*C-55℃℃(-4°F-131°F)	-20*C-55℃℃(-4°F-131°F)
IP Rating	IP20	IP20
Cooling Type	Natural	Natural
Operating Environment	Indoor (5%-95%(RH} No Condensing)	Indoor (5%-95%(RH} No Condensing)
Altitude	≤2000 m	≤2000 m
Cycle Life	≥8000@25℃	≥8000@25℃
