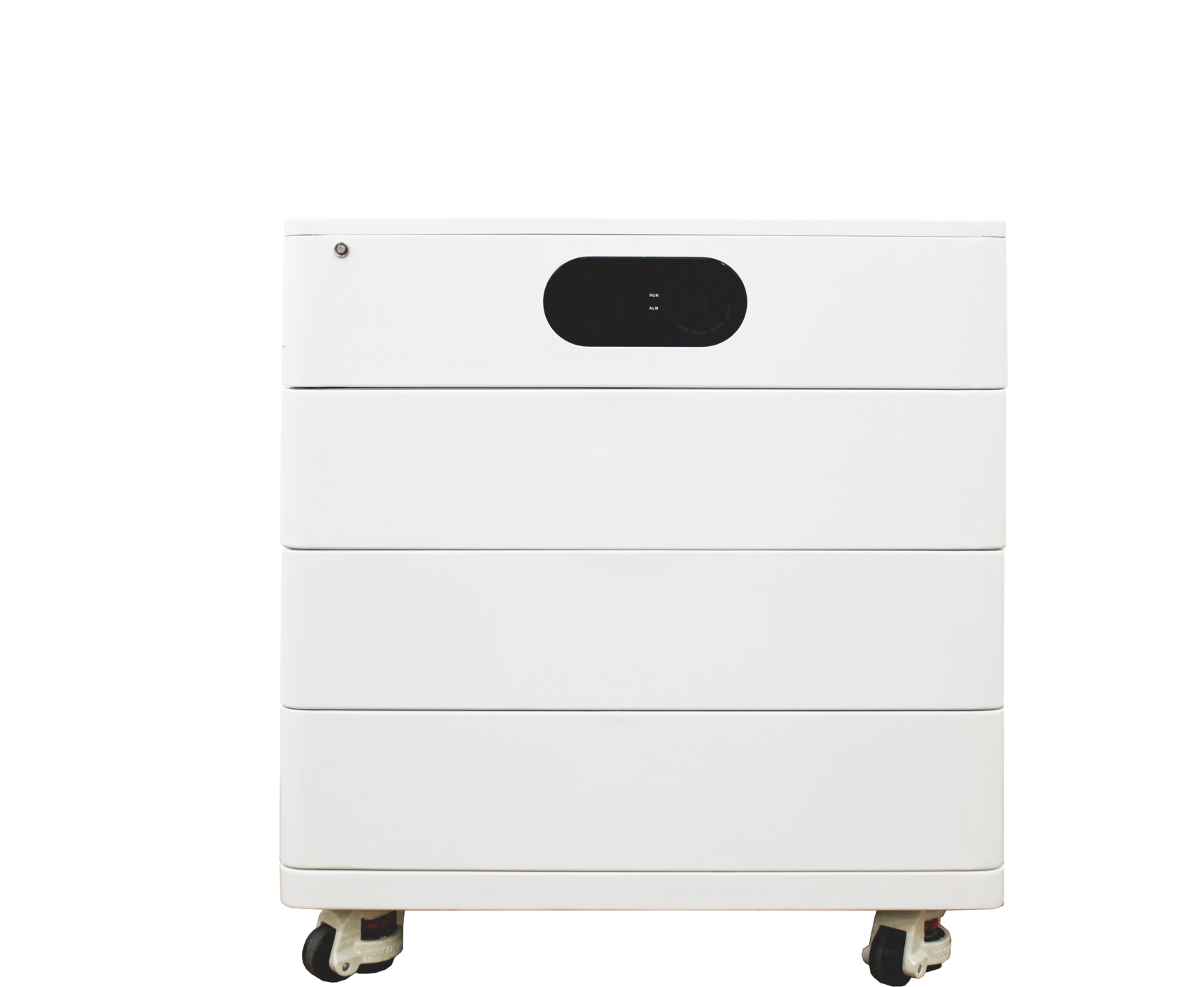

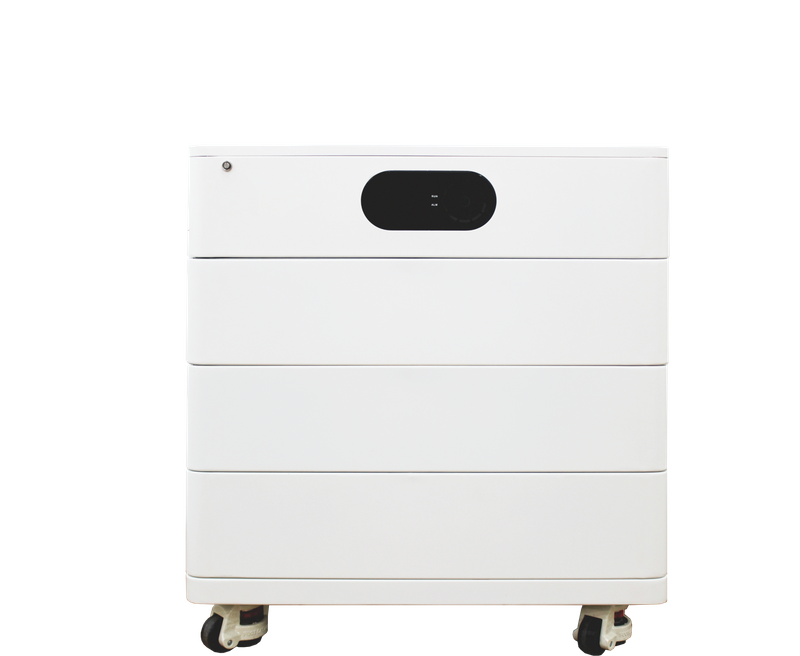

Modular energy storage system & Floor-standing stackable battery : WRES-H-25-023

Introducing the WRES-H-25-023 Energy Storage Battery, a high-performance solution for scalable energy storage needs. It delivers a rated capacity of 100Ah, operates within a voltage range of 201.6-259.2Vdc, and supports 50A charge/discharge current, with an efficiency of 90%.
Comprehensive safety protections are integrated, including over-voltage, over-current, short-circuit, low-voltage, and over-temperature safeguards, plus cell balance technology, ensuring reliable and secure operation. Designed for flexibility, it features a stackable structure with dimensions of 660699454mm and a weight of 226KG, enabling customized energy storage configurations.
Certified by CE and Cell UL 1973, it supports CAN/RS485 communication for seamless integration and real-time monitoring. With an IP20 rating, it’s suitable for indoor use (5%-95% RH, no condensing), operating in temperatures from -20℃ to 55℃ and altitudes ≤2000m. Boasting a lifespan of over 15 years at 25℃, this battery is an ideal choice for commercial, industrial, and grid-tied energy storage applications, combining efficiency, safety, and scalability.

Model:	WRES-H-25-023
Availability:

Quantity:



Inquire Add to Basket

Product Name	WRES-H-25-023
Total Energy (kWh)	23.04
Usable Energy (kWh)	21.66
Nominal Voltage (Vd.c)	230.4
Voltage Range (Vd.c)	201.6 ~ 259.2
Rated Capacity(Ah)	100
Recommend Current (A) (Charge)	50A
Recommend Current (A) (Discharge)	50A
Recommend Using DOD	90%
BMS Features	Over-voltage & Over-current Protection Short-circuit Protection Low-voltage Protection Over Temperature Protection/Cell Balance
Installation Type	Stackable
Dimension (W H D)(mm)	660699454
Weight (KG)	226
Certification	CE/Cell UL 1973
Communication	CAN/RS485
Storage Temperature	-20*C-55℃℃(-4°F-131°F)
IP Rating	IP20
Cooling Type	Natural
Operating Environment	Indoor (5%-95%(RH} No Condensing)
Altitude	≤2000 m
Operation Life	15+years(25℃/77°F)
